Used Zoomlion 6012-6Tower Crane Engineering Construction Machinery Topkit Cranes
Characteristics :
Used Zoomlion 6012-6 Tower Crane Maximum lifting capacity 6000kg, boom end lifting capacity: 1200kg, suitable for hoisting large components
Working range: 60 meters, wide coverage, meeting the requirements of long-distance hoisting.
Height adaptability: Fixed height 40.5 meters, attached height 29.9 meters, which can be flexibly adjusted to adapt to different construction heights.
Multiple protection devices: Equipped with torque limiters, anti-fall devices, hook top protection, etc., to prevent the risk of misoperation.
Diversified working modes: Supports multiple installation methods such as leg fixation, underframe fixation, and exterior wall adhesion, suitable for complex construction sites.
Independent driver's cab: Wide field of vision, comfortable operating environment, and enhanced safety
Application :
1, Used Zoomlion 6012-6 Tower Crane:It is suitable for high-rise buildings, large factories and other scenarios, especially for construction projects that require frequent hoisting of heavy materials such as steel bars and concrete.
2, Used Zoomlion 6012-6 Tower Crane:It is capable of handling complex operations such as the hoisting of bridge components and the installation of port equipment, and its long boom end lifting capacity can cover a wide range of working surfaces.
3, Used Zoomlion 6012-6 Tower Crane:Supports multiple fixation methods and is suitable for complex environments such as mountainous areas and narrow sites.
Advantage:
Used Zoomlion 6012-6 Tower CraneThe high-efficiency lifting performance, short boom length and outstanding lifting capacity. When the boom length is 30 meters, the boom tip can lift 3.45 tons, with a maximum lifting capacity of 6 tons and a lifting speed of 100 meters per minute, leading the industry.The arm length combination is flexible (60 meters to 30 meters, with each 5 meters in increments), meeting different construction requirements, especially suitable for PC building construction.
Packing :
After the tower crane is disassembled, it is packed into packed wooden cases and then transported in containers.
Technology:
Parameter
ltem | Value/Description |
| Model | TC6012-6/ H6012-6A |
| Maximum lifting weight | 6 tons (when the arm length is 60 meter
s) |
| | 60 m (luffing, minimum 2.5 m) |
| Independent height | 40.5 m |
| Maximum lifting height | 220m (After attach-
ment) |
| Rated lifting moment | 80 tons of rice |
Maximum lifting weight of arm
tip | 1.2 tons |
| Lifting speed | 0-80 m/min (Max) |
| Swing speed | 0-0.6 r/min minutes |
| Luffing speed | 0-50 m/min |
| Total motor power | 36+5.2 kW (including jacking mechanism) |
| Working range | 2.5-60 m (adjustable) |

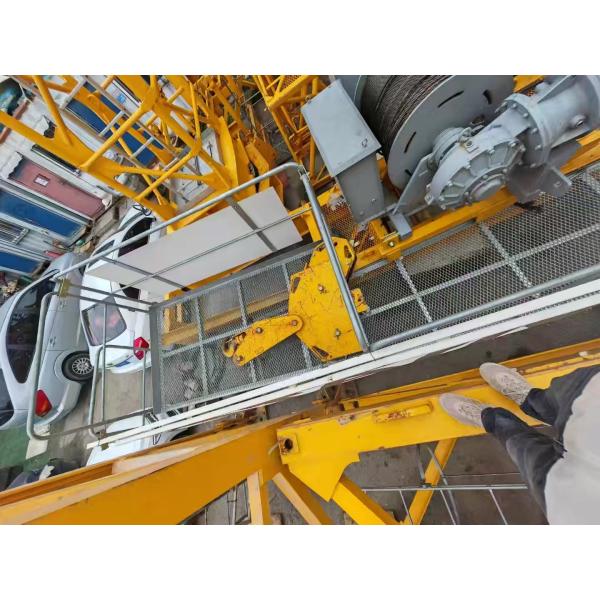

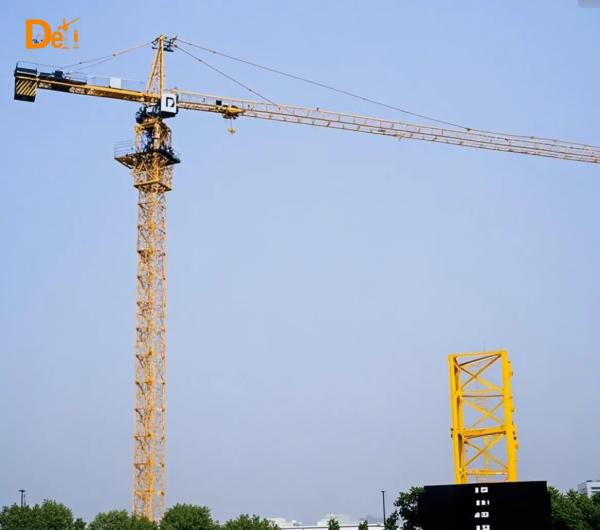

Picture Show :
